Description

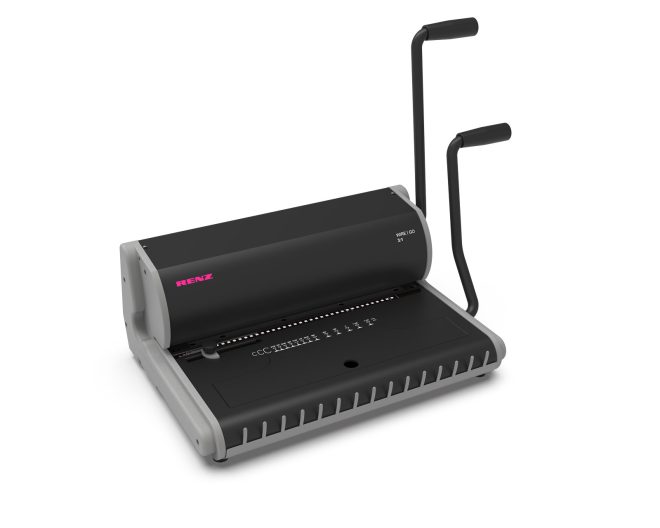

RENZ WIRE|GO 3:1 is a manual 3:1 pitch (34 rings/A4) wire comb binding machine. This compact entry-level model is perfect for quick and easy punching and binding of A4 and A5 documents. The ergonomic two-lever system and the integrated comb holder make it particularly user-friendly. With a maximum working width of 300 mm, you can punch up to 20 sheets per punching process with ease. Binding strengths of up to 135 sheets are possible.
Specification
Punching capacity sheets per hr
|
12,000
|
Max. punching width
|
300 mm
|
Max. punching thickness
|
2.0 mm
|
Punching operation
|
Manual
|
Punch dies available
|
square 4 x 4 mm
|
Pitch
|
3:1
|
Selectable punch pins (QSA)
|
No
|
Variable margin depth
|
No
|
Binding thickness
|
1 – 13.5 mm
|
Binding element Ø
|
5.5 – 16 mm
3/16″ – 5/8″
|
Max. binding width
|
300 mm
|
Binding operation
|
Manual
|
No. of books output per hr
|
200
|
Machine dimensions L x W x H
|
190 x 333 x 456mm
|
Machine weight
|
15,4 kg
|
Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.
All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 1.5 – 2.0 mm.
