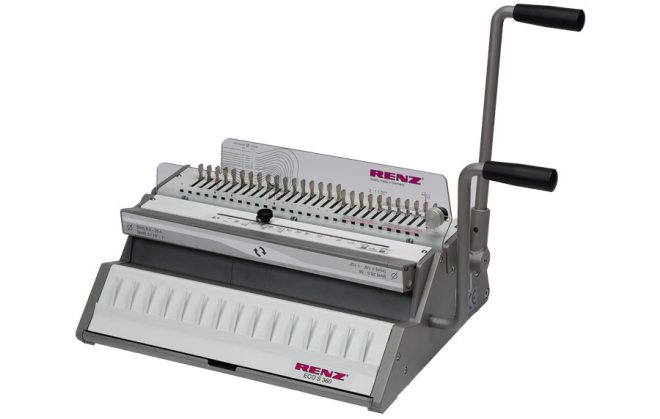

Renz Eco S 360 Wire Binding Machine

The high quality Renz Eco S 360 Wire Binding Machine 2:1 pitch manual punching and binding machine designed for regular use in a small to medium sized office.


Need some help? Call 01934 645 050


Renz Eco S 360 Manual Wire Binder is an easy to use wire binder, ideal for any office document application, where a high quality finish is required to guarantee a professional and lasting impression. Built in Germany with high quality metal material and construction, the Renz Eco S 360 Manual Wire Binder is designed and built to last.

The Renz Eco S 360 2:1 pitch manual punching and binding machine designed for regular use in a small to medium sized office.

  • Binds up to 340 sheets
  • Closure control guarantees easy ring wire closure for perfect presentations every time
  • Gauge to alter margin for a stronger bind
  • Special hardened punch pins for long lasting life
  • Staggered punching pins for better punching
  • QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5, A4 and A3
  • Adjustable side lay for perfect punching registration
  • Easy to empty sliding waste tray
  • Measures the document or ring wire size
  • Parallel adjustment guarantees a perfect bind every time
  • Heavy duty construction & compact design
    Vertical punching makes it quick and easy to punch correctly every time.
    QSA (Quick Size Adjustment) technology means that punching pins can be cancelled and paper formats can be changed quickly and easily.
    Depth gauge feature allows the operator to adjust the punched hole margin from 2 mm to 4,5 mm. This adds strength to the bound edge.
    Binds up to 340 sheets. The closure control guarantees quick and exact wire closing.
    Electric modular motor can upgrade a manual Renz Eco S 360 to an electric punch.
    EAN 4029126341992
    Article no. 27210020
    Punching capacity sheets per hr 12,000
    Min. punching width 10 mm
    Max. punching width 360 mm
    Min. unpunched length 50 mm
    Max. unpunched length 500 mm
    Max. punching thickness 2.5 mm
    Punching operation Manual
    Punch dies available Oblong 5.5 x 3.5 mm
    Pitch 2:1
    Selectable punch pins (QSA) Yes
    Variable margin depth Yes
    Binding thickness 1 – 34 mm
    Binding element Ø 6.9 – 38 mm
    1/4″ – 1 1/2″
    Min. binding width 10 mm
    Max. binding width 360 mm
    Binding operation Manual
    No. of books output per hr 200
    No. of calendars output per hr 160
    Machine dimensions L x W x H 330 x 560 x 180 mm
    Machine weight 13 kg
    Machine packing dimensions L x W x H 620 x 480 x 345 mm
    Machine weight with packing 15,5 kg
    Power requirement

    (1) For best punching results we recommend a paper thickness of 1.5 – 2.0 mm. All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.

    Technical modifications may be made without notice.

    1 mm = 10 sheets of paper. based on 70/80 gsm.

    See our range of binding wires and covers here.

  • Pitch: 2:1
  • Punches per Cycle: 30 sheets
  • Binding Size: up to 340 sheets
  • Variable sizes: up to 360mm
  • Variable margin depth
  • 28 selectable punch pins
  • Integrated binding table
  • Staggered punching pins
  • Adjustable side lay
  • De-selection pins
