Refurbished model available

Renz DTP 340M Punching Machine with dies and closers – refurbished

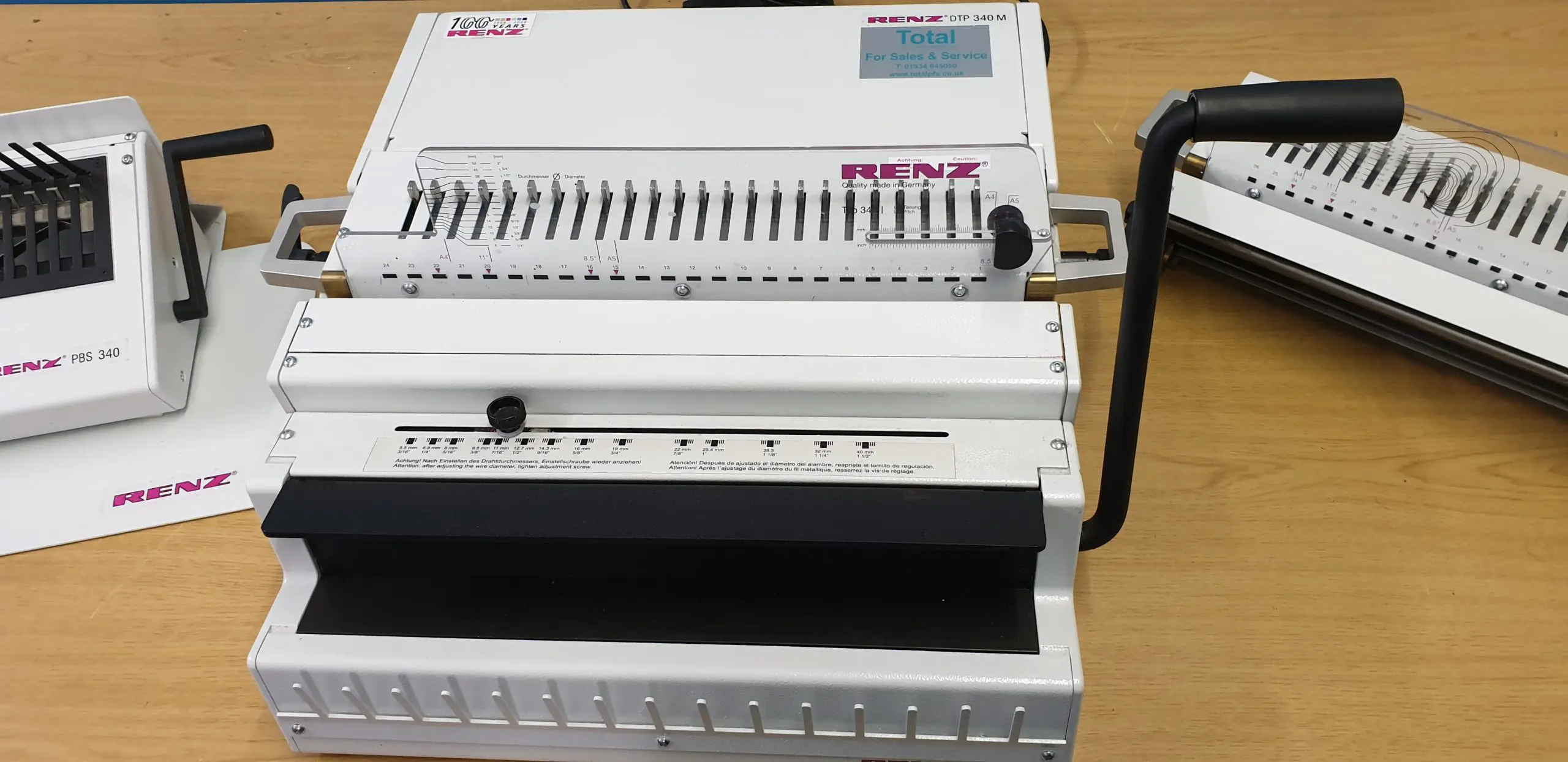

Fully Refurbished Renz DTP340M Punching Machine with dies and binders/closers

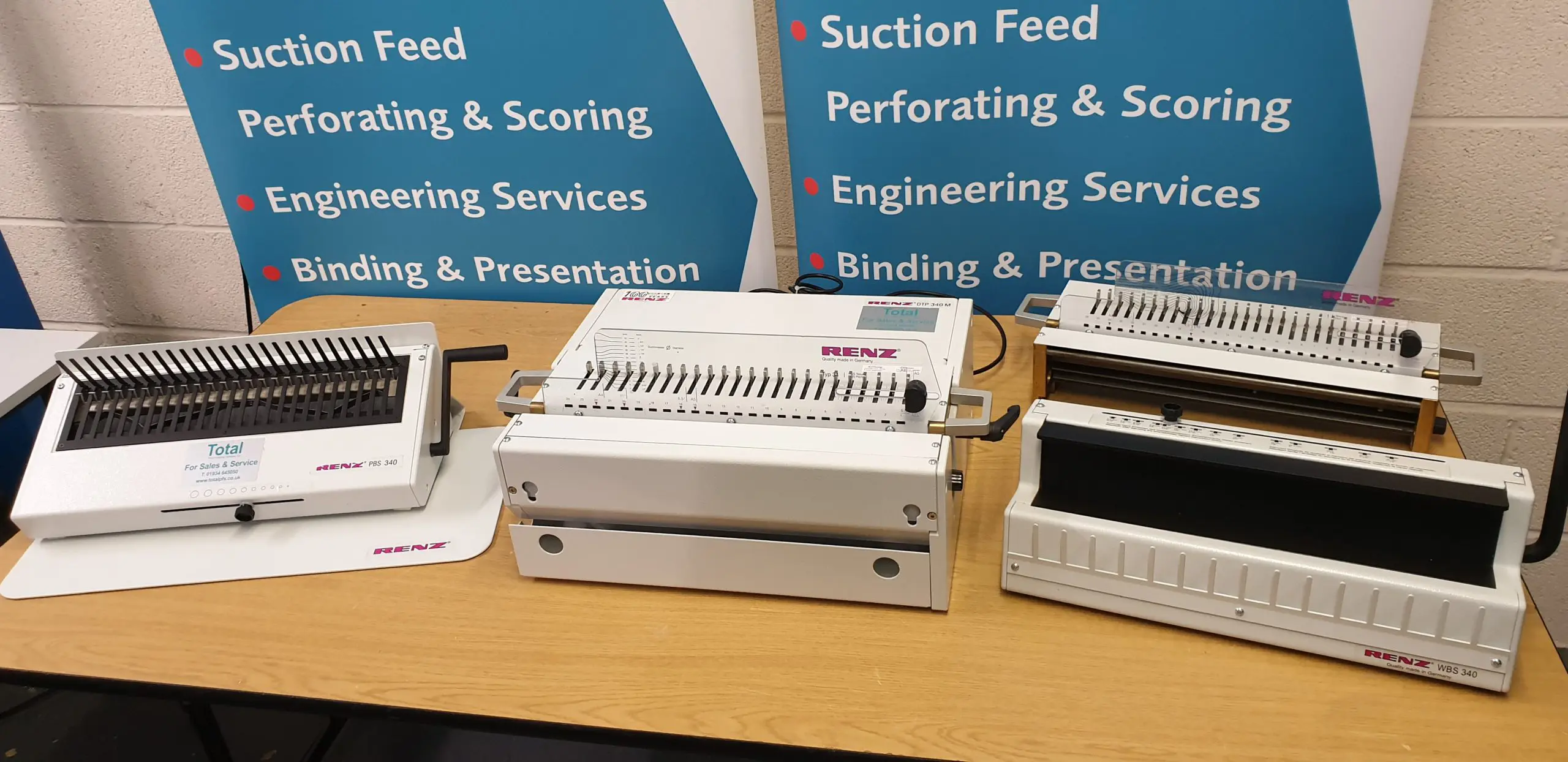

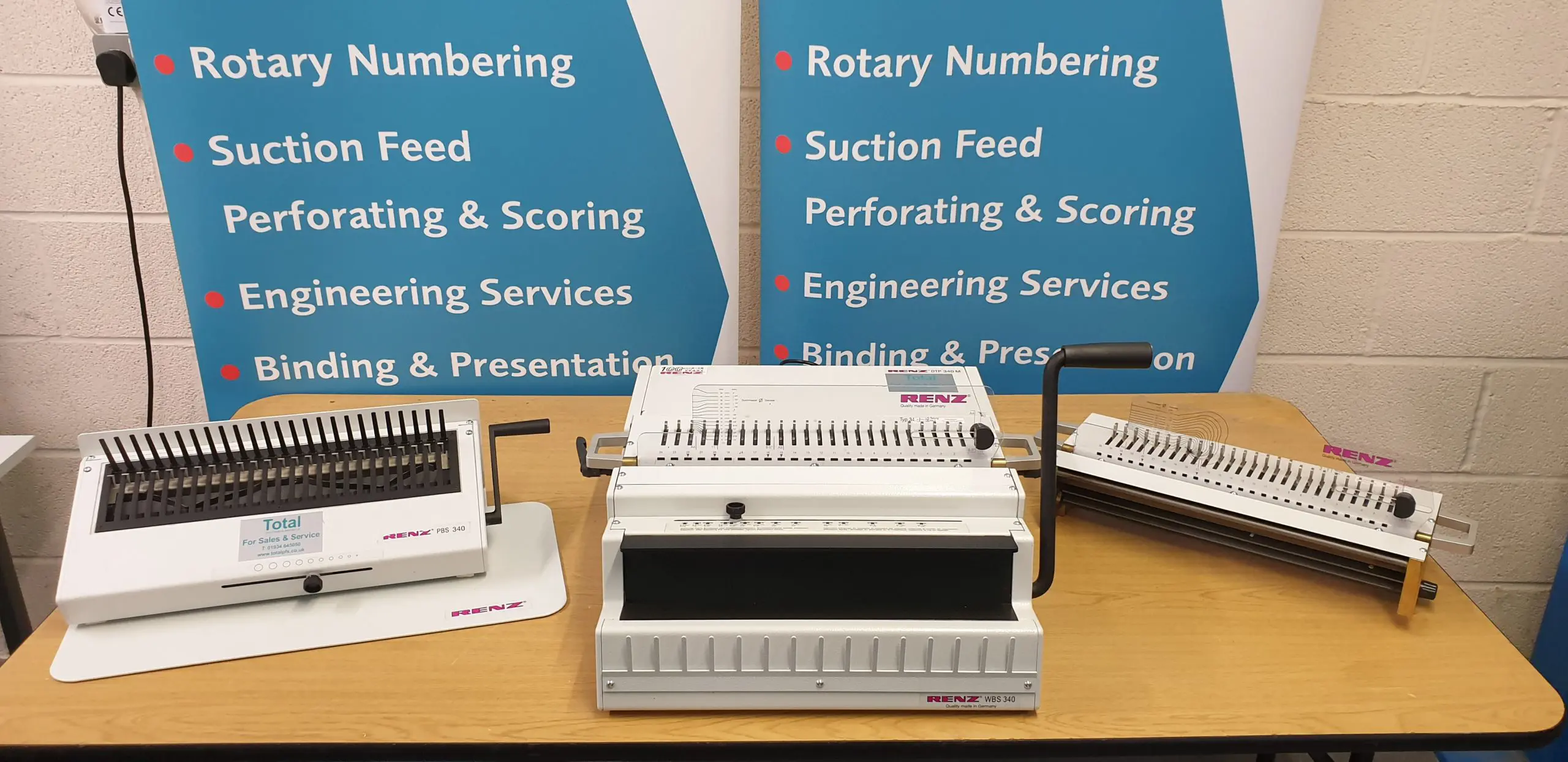

Fully refurbished and in great condition, Renz DTP340M Punching Machine, complete with punching dies for wire binding (2:1) and plastic comb binding, plus additional closing and inserting units for both wire and comb binding

We also have this product in stock as a refurbished item. Call us for more information
Need some help? Call 01934 645 050

Description

Renz DTP340M Punching Machine with dies and binders/closers – Fully Refurbished
Renz DTP340M Punching Machine, Fully refurbished and in great condition, complete with punching dies for wire binding (2:1) and plastic comb binding, plus additional closing and inserting units for both wire and comb binding
This machine was taken from a council print room and is in good working condition.

Reliable, heavy-duty, desktop punching machine. The modular design makes it very versatile for all types of book and calendar production.

  • Punching dies for all types of ring wire, plastic comb, coil and calendars.
  • Punch a wide range of mixed stocks
  • Fast die changes
  • QSA (Quick Size Adjustment) for high flexibility of different paper formats: A5, A4 and A3(1)
  • Vertical paper feeding for precise punching
  • Compact simple design, one machine can punch and bind all jobs when using Renz MBS binding modules
Maximum:
Width
Width
340 mm
Punch up to <sup>(1)</sup>
Punch up to (1)
3.5 mm
Output:
Mechanical cycles per hour
Mechanical cycles per hour
1,200
Max. punched sheets per hour
Max. punched sheets per hour
20,000

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator. For best punching results we recommend a paper thickness of 2.0 – 2.5 mm.

(1) Dependent on the die type.

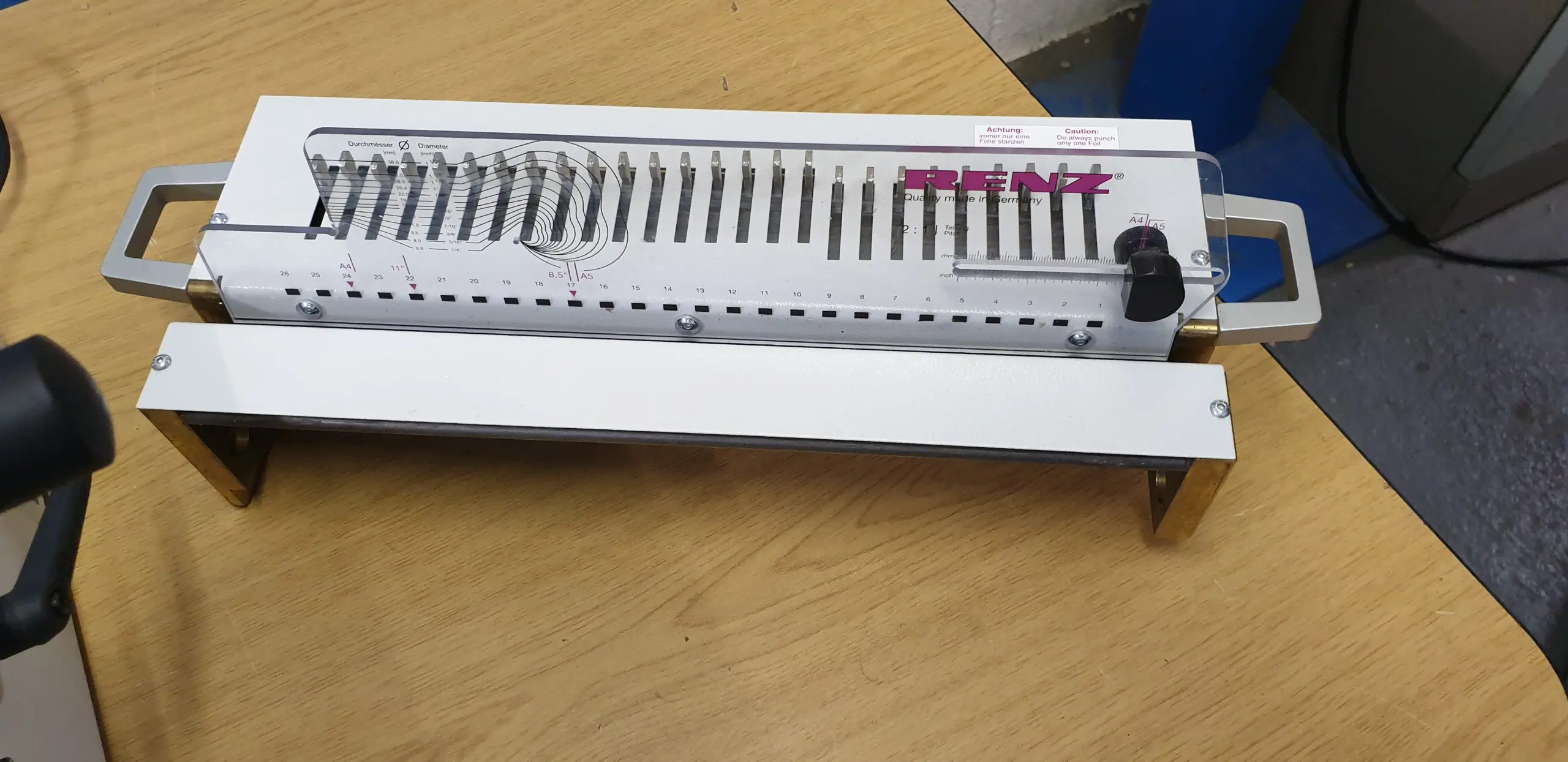

Strong and reliable German engineered punching dies with a working width of 340 mm. Available in a wide range of different punch patterns.
Simple vertical loading system for quick and effortless die changes.
QSA (Quick Size Adjustment) technology allows the quick cancellation of punching pins without the need to remove the die.
The depth gauge feature allows the operator to adjust the punched hole margin from 2 mm to 4,5 mm(1). This adds strength to the bound edge.
Large waste tray which can be easily removed allowing emptying from the front or the side of the machine.
Upgrade your Renz DTP 340M punch with RENZ MBS binding modules to make a workstation. Illustrated is the Renz DTP 340M and WBS 360 for wire comb binding.
Upgrade your Renz DTP 340M punch with RENZ MBS binding modules to make a workstation. Illustrated is the Renz DTP 340M and PBS 340 for plastic comb binding.
Upgrade your Renz DTP 340M punch with RENZ MBS binding modules to make a workstation. Illustrated is the Renz DTP 340M and CBS 340 for plastic coil binding.
Mechanical cycles per hour 1,200
Min. punching width 10 mm
Max. punching width 340 mm
Min. unpunched length 40 mm
Max. unpunched length 800 mm
Max. punching thickness 3.5 mm (1)
Punching operation Foot pedal
Punch dies available 3:1, 2:1 ring wire, calendar, coil, plastic comb
Die type Standard
Selectable punch pins (QSA) Yes
Bespoke dies No
Variable margin depth Yes (1)
Die changeover time 1 min
Machine dimensions L x W x H 360 x 490 x 250 mm
Machine weight 31 kg (2)
Machine packing dimensions L x W x H 620 x 480 x 345 mm
Machine weight with packing 34.5 kg (2)
Power requirement 230/250V / 50 Hz / 250W
115/200V / 60 Hz / 250W
Renz PBS340 Comb Inserter:
Standalone plastic comb manual  closing machine for closing of plastic comb elements from ø 6 to 52 mm (1/4″ – 2″)
Max. width
Max. width
340 mm
Max. thickness
Max. thickness
50 mm
Output
Max. no. of bound products per hour
Max. no. of bound products per hour
250

Pitch US or EUROP

Binding thickness1 – 50 mm

Binding element Ø6 – 52 mm

Min. binding width10 mm

Max. binding width340 mm

Binding operation

ManualNo. of books output per hr250

Machine dimensions L x W x H500 x 190 x 170 mm

Machine weight 4.3 kg

Machine packing dimensions L x W x H620 x 480 x 345 mm

Machine weight with packing 6.5 kg

WBS340 Wire Inserter:

Standalone wire manual closing machine for closing RENZ RING WIRE® elements from ø 5,5 mm – 38 mm (3/16″ – 1 1/2″) independent of pitch, working width 360 mm.

Maximum:
Width
Width
360 mm
Thickness
Thickness
34 mm
Output:
Max. bound books per hour
Max. bound books per hour
250
Max. bound calendars per hour
Max. bound calendars per hour
200

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

Pitch 4:1, 3:1 & 2:1
Binding thickness 1 – 34 mm
Binding element Ø 6.9 – 38 mm
1/4″ – 1 1/2″
Min. binding width 10 mm
Max. binding width 360 mm
Min. unbound edge 65 mm
Max. unbound edge 600 mm
Binding operation Manual
No. of books output per hr 250
No. of calendars output per hr 200
Calendar hangers Loose
Machine dimensions L x W x H 560 x 150 x 320 mm
Machine weight 8.5 kg
Machine packing dimensions L x W x H 620 x 480 x 345 mm
Machine weight with packing 10.5 kg

Technical modifications may be made without notice. 1 mm = 10 sheets of paper, based on 80 gsm.

Please call us now for a demonstration or expert advice on the right machine for the job!

We stock a large range of spares and our expert engineers can assist with any maintenance or technical advice. Call us now on 01934 645050 to speak to us or use our contact page and one of our experts will call or email you back.

Please note that due to the weight and size of the machine the price is based on collection from our premises in Weston super Mare, we will contact the buyer immediately upon receipt of payment to arrange pick up/delivery.

We can provide delivery, installation and onsite operator training, please call us for details.

Buying a refurbished machine from Total Print Finishing Services Ltd means that you are buying a machine that has been fully and completely refurbished to an extremely high standard by our in house engineers.

Please do not hesitate to contact us if you have any questions.

***Alternatively, we can provide delivery, installation and onsite operator training, please call us or message for details***
See our full range of binding machines here
  • Working Width: 340mm
  • Punching Cycle: 1 second
  • Punching Size: up to 35 sheets
  • Binding and inserting modules can be added
  • Exchangeable dies
  • Adjustable side lay
  • Variable margin depth
