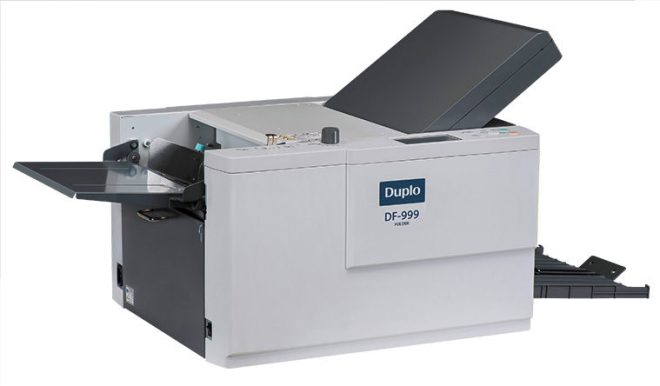

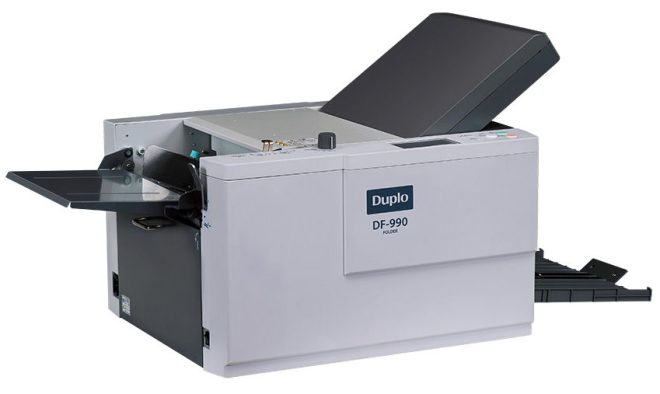

DF990/999 Friction Folding Machines

Duplo’s DF-999 & DF-990 are the fastest* table-top folding solutions in their category, with a top speed of 260 sheets per minute. They are faster than their predecessors. User friendliness is at the heart of these folders with features such as Touch panel, colour LCD, batch mode, a reliable friction feeding mechanism and up & down counter. The efficiency and productivity of the DF- 999 & DF-990 results in both time and cost savings.

Need some help? Call 01934 645 050

Description

Duplo’s DF-999 & DF-990 are the fastest* table-top folding solutions in their category, with a top speed of 260 sheets per minute. They are faster than their predecessors. User friendliness is at the heart of these folders with features such as Touch panel, colour LCD, batch mode, a reliable friction feeding mechanism and up & down counter. The efficiency and productivity of the DF- 999 & DF-990 results in both time and cost savings.

Ideal for low to mid-volume runs Processes up to 15,600 sheets per hour Accurate and secure folding Multilingual support Brochures · Manuals · Personalised Documents Magazines · Leaflets · Price lists

Specifications

Min Sheet Size 74 mm x 105 mm (Sheet, single folded paper)
Max Sheet Size 311 mm x 457.2 mm
Paper Quality Fine quality paper: 46.5 to 157 gsm Art/ coated paper: 84.9 to 127.9 gsm
Folding Mode Single Fold, Double Fold, Irregular Accordion Fold, Letter Fold, Accordion Fold, Gate fold1, Specific cross fold2, custom fold3. Other non-standard fold1,3.
Short grain paper of 64 gsm or less cannot be used. Paper length has to be 432mm or less2. Fine quality paper 52.3 to 104.7 gsm3.
The maximum finished length has to be 230mm or less. Paper Weight From 46 to 157 gsm Max Processing Speed 260 sheets/min (A4, single fold, 81.4 gsm)
Feeding Capacity 500 sheets (Fine quality paper 64 gsm)
Feeding Mechanism Manual up and down, Automatic on DF 999
Automatic Feeding Stopper & Stacker Roller DF990 only
Cross-Fold Yes
Noise Emission Equivalent continuous A-weighted sound pressure level: 72
Power 100-240 V, 50/60 Hz Power Consumption & Electric Current 100 W, 1.0/0.5 A Machine Dimensions (WxDxH) W-665 mm x D-512 mm x H-494mm
Weight 43Kg

*As per the research carried out by Duplo International Limited in March 2019.
*1 Gate Fold: Fine quality paper less than 64 gsm cannot be used.
*2 Cross Fold: Fine quality paper 52.3 to 104.7 gsm.
*3 Custom Fold: Max finish length is 230 mm.
