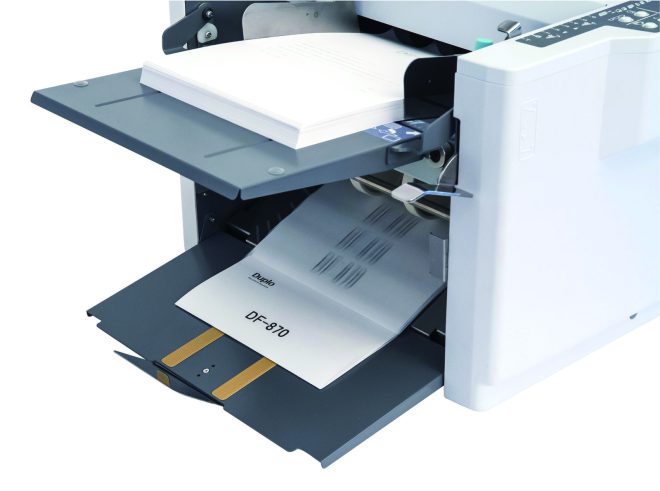

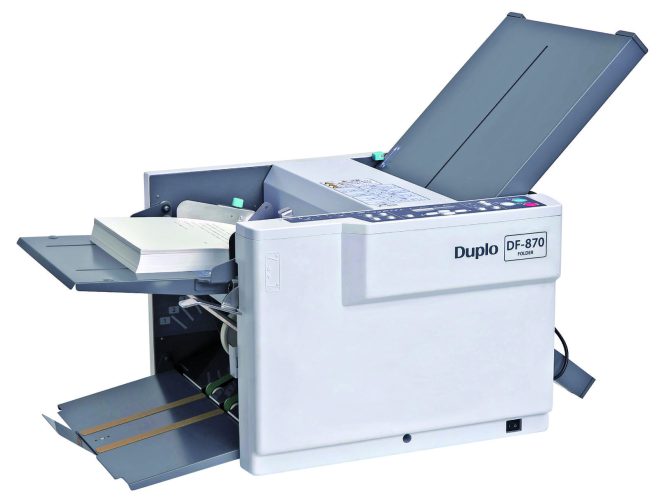

DF850/870 Friction Folding Machines

Duplo’s DF-850 & DF-870 are the fastest* table-top folding solutions in their category, with a top speed of 241 sheets per minute. They are twice as fast as its predecessors. User friendliness is at the heart of these folders with features such as easy to use control panel, batch mode, a reliable friction feeding mechanism and up & down counter. The efficiency and productivity of the DF- 850 & DF-870 results in both time and cost savings.

Need some help? Call 01934 645 050

Description

Description

Duplo’s DF-850 & DF-870 are the fastest* table-top folding solutions in their category, with a top speed of 241 sheets per minute. They are twice as fast as its predecessors. User friendliness is at the heart of these folders with features such as easy to use control panel, batch mode, a reliable friction feeding mechanism and up & down counter. The efficiency and productivity of the DF- 850 & DF-870 results in both time and cost savings.

Recommended for:
Mailing houses, Governments, Councils, Publishers, Libraries, Local newspapers, Schools, Universities, Trade associations, Manufacturing, Hotels and leisure centres to mention a few.

Applications:
Magazines & Newspaper inserts, Letters, Leaflets, Brochures, Menus, Bulletins and Direct mail pieces

Maximum Paper Size 297×432 mm
Minimum Paper Size 91×128 mm If the length of the sheet is less than 182mm- Only Single fold, Paper thickness: 64 to 81.4 g/m2, affects exit stacking
Paper Quality Recycled paper, Uncoated bond paper, Stencil paper, Art and coated paper*
Folding Mode Single Fold, Double Fold, Irregular Accordion Fold, Letter Fold, Accordion Fold, Gate fold*1, Cross fold*2, custom fold*3.
Paper Weight 52.3 to 157 gsm
Maximum Processing Speed 241sets/minutes A4, single fold , 81.4gsm Capacity of Feeding Tray 500 sheets (fine quality paper 64 g/m²/17 lb.)
Feeding Mechanism Manual up and down Manual up and down

Automatic Folding Stopper and Stacker Roller (df 870 only)
Cross-Fold Yes
Noise Level 76 dB*4 75 dB*4
Power Supply 100-240 V (50/60 Hz) Current Consumption 1.3-0.650 A (125 W)
Package Dimension 575x515x655 mm Weight 34.0 kg
Duplo has a policy of continuous improvement and reserves the right to amend any specifications without prior notice.

*Art and coated paper – Subject to testing
*1Gate Fold: Short grain paper less than 52.3gsm cannot be used
*2Cross Fold: Fine quality paper 52.3 to 104.7gsm
*3Custom Fold: Maximum finish length is 216mm
*4Noise Level: Equivalent continuous A- weighted sound pressure level Sound pressure level at peak: DF-850 – 99 dB & DF-870 – 94dB

Up to 241 sheets per minute

  • User friendly
  • Paper sizes: B7 to A3
  • Six pre-programmed popular folds
  • Customize non-standard folds
  • Crossfold as standard
  • Batch mode
  • Noise level: 76 dB *4

Seven Fold Types:
Letter, Single, Gate, Double Accordion, Irregular Accordion, Crossfold
