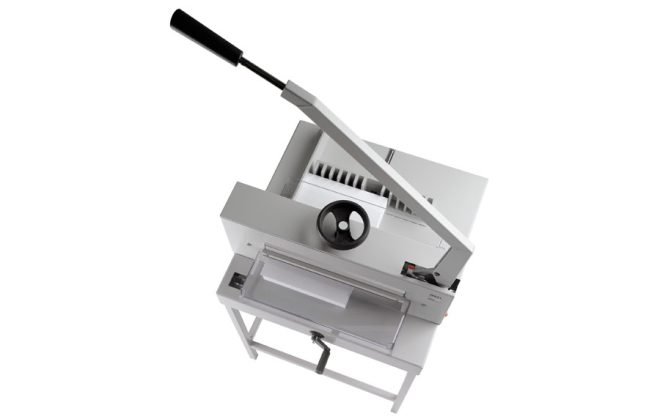

Ideal 4705 Manual Guillotine

The powerful Ideal 4705 manual guillotine with 475mm cutting length


Need some help? Call 01934 645 050


The Ideal 4705 Manual Guillotine has “SCS” – the Safety Cutting System provides numerous safety features: Hinged, transparent safety guard on the front table (locks automatically while cutting); transparent hand guard on the rear table; safety catch (locks blade lever in upper position); safe and convenient blade change from the front without removing machine covers; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; cutting stick can be turned or replaced easily from the outside of the machine.

Buying options available for the Ideal 4705 Manual Guillotine:

  • Product Only
  • Product with Stand
  • Dimensions (HxWxD): 590mm x 1000mm x 890mm
  • Dimensions with Stand (HxWxD): 1270mm x 1000mm x 890mm
  • Weight: 85 kg
  • Weight with Stand: 93 kg
  • Cutting Length: 475mm
  • Cutting Height: 70mm
  • Table Depth: 455mm
  • Narrow Cut: 30mm
  • Cuts large formats of up to 475 mm in length, 70 mm cutting height
  • High-quality blade made from “Solingen steel”
  • Solid steel blade carrier
  • Adjustable blade guides made of hardened steel
  • Solid spindle clamp with hand wheel
  • Spindle guided backgauge with hand crank
  • Measuring scale (mm/inches) on front table
  • Solid all-metal construction
  • Designed as a table top machine, a stand is available as an option
