Duplo PFi BIND 2100 PUR

Duplo’s PFi BIND 2100 PUR is the simplest and most advanced PUR binder. It is designed to make PUR binding easy to use, maintain and clean.

Need some help? Call 01934 645 050

Description

Duplo’s PFi BIND 2100 PUR is the simplest and most advanced PUR binder. It is designed to make PUR binding easy to use, maintain and clean. Its intelligent gluing application combined with complete automation will enable you to bring in-house highly profitable short run, on-demand book binding jobs. The Patented Orbital PUR System (POPS) makes the solution, the most productive and economical in its class! The POPS makes the cleaning and maintenance process almost redundant resulting in savings of PUR glue, wax and labour costs.

Recommended for:
Universities, schools, design agencies, corporate in-plants, local government, copy shops, print on demand book binders and small to medium size commercial printers

  • Short to medium run lengths
  • Near-line to digital press

Specification:

  • Minimum book size 80mm x 80mm
  • Spine length 80mm x 330mm
  • Cover dimensions Minimum: 80mm x 160mm Maximum: 340mm x 900mm
  • Cover thickness 80gsm – 300gsm
  • Spine thickness 1mm – 40mm
  • Cycling speed 290 Glue application Spine – PUR Side – PUR
  • Power supply Single phase 230 V 50 Hz, 12A
  • Net weight 380 kgs
  • Dimensions of the machine (LxWxH) 1442mm x 750mm x 1260mm

Features:

  • Easy to use – Minimal training required
  • Fully automatic set-up – It is as simple as ABC!

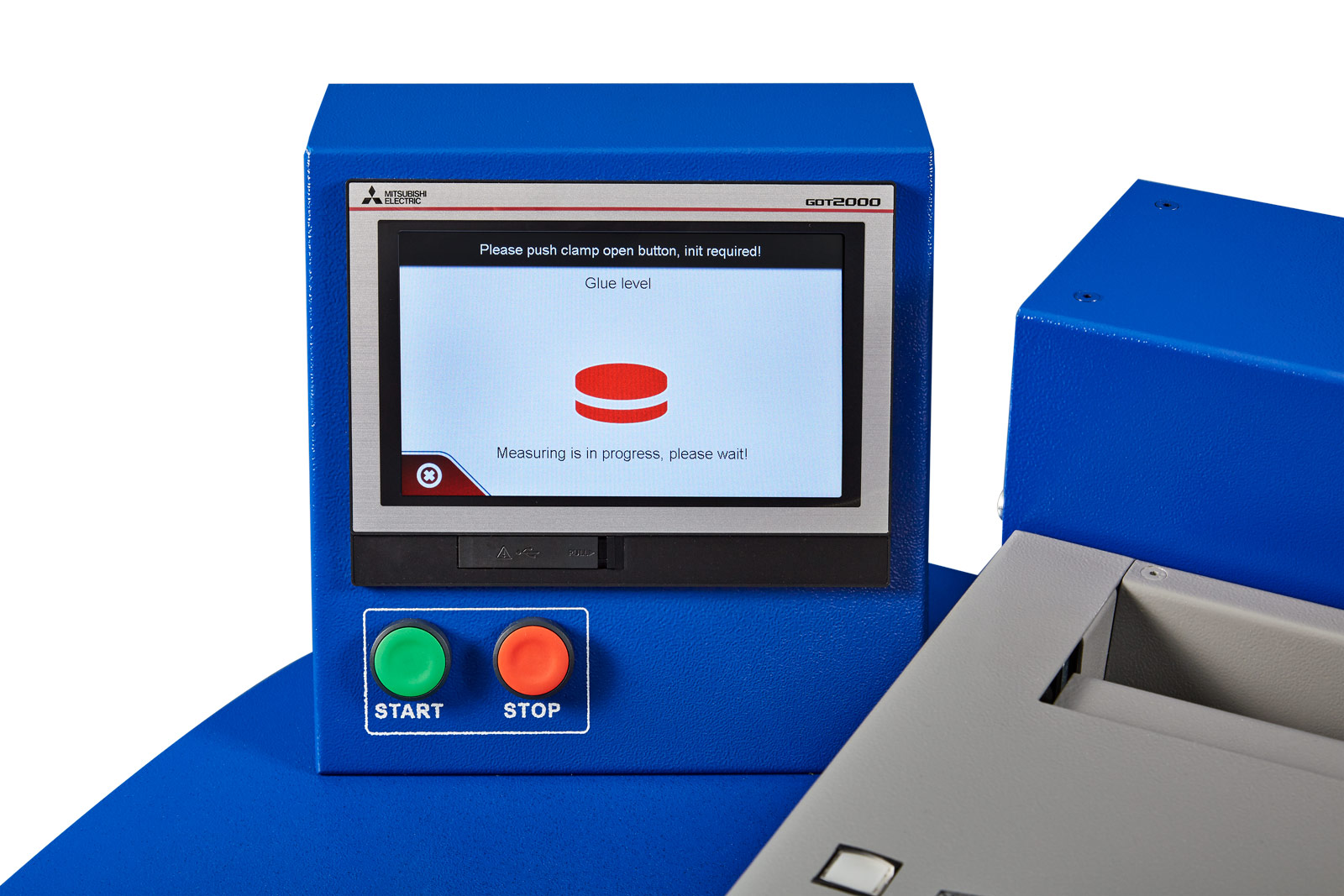

  • Control Centre – Make it your own. Fully customisable

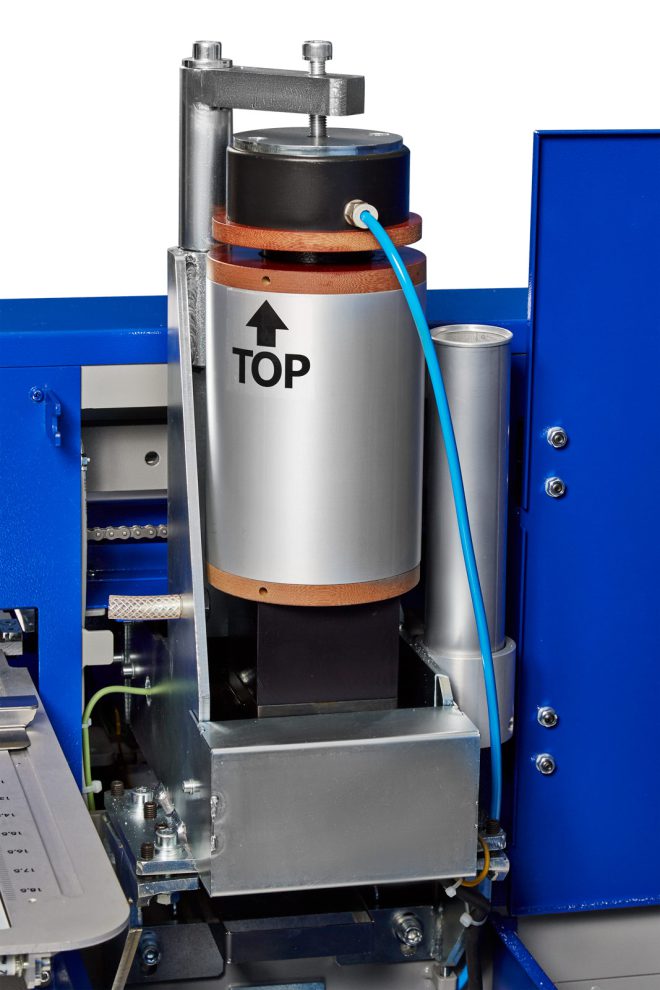

  • EasyLOAD Cartridge – Makes PUR handling easier than EVA!
  • 5 minutes cleaning – Thanks to Patented orbital PUR system. E
  • Auto mode – Boost productivity with buttonless operations Agile – Opening new revenue streams
  • Virtually unlimited applications – Bind almost anything
  • Design flexibility – Easily align graphics and text in your cover and inners
  • Application design – Round or square finish perfect bound books Reliability – Reduce downtime
  • Robust and heavy duty
  • Virtual Network Computing – Allows remote engineering and enhanced performance Precision and waste reduction
  • Built in book block measuring system
  • Precise glue application
  • Glue cut-offs for high quality production
  • Patented Orbital PUR System (POPS)
