150 FR Bookletmaking System

The 150Fr Booklet System is the world’s smallest fully automatic bookletmaking solution. It features the DFC-101 collator and the DBM-150 Bookletmaker and Trimmer. This is Duplo’s most cost effective solution.

Need some help? Call 01934 645 050

Description

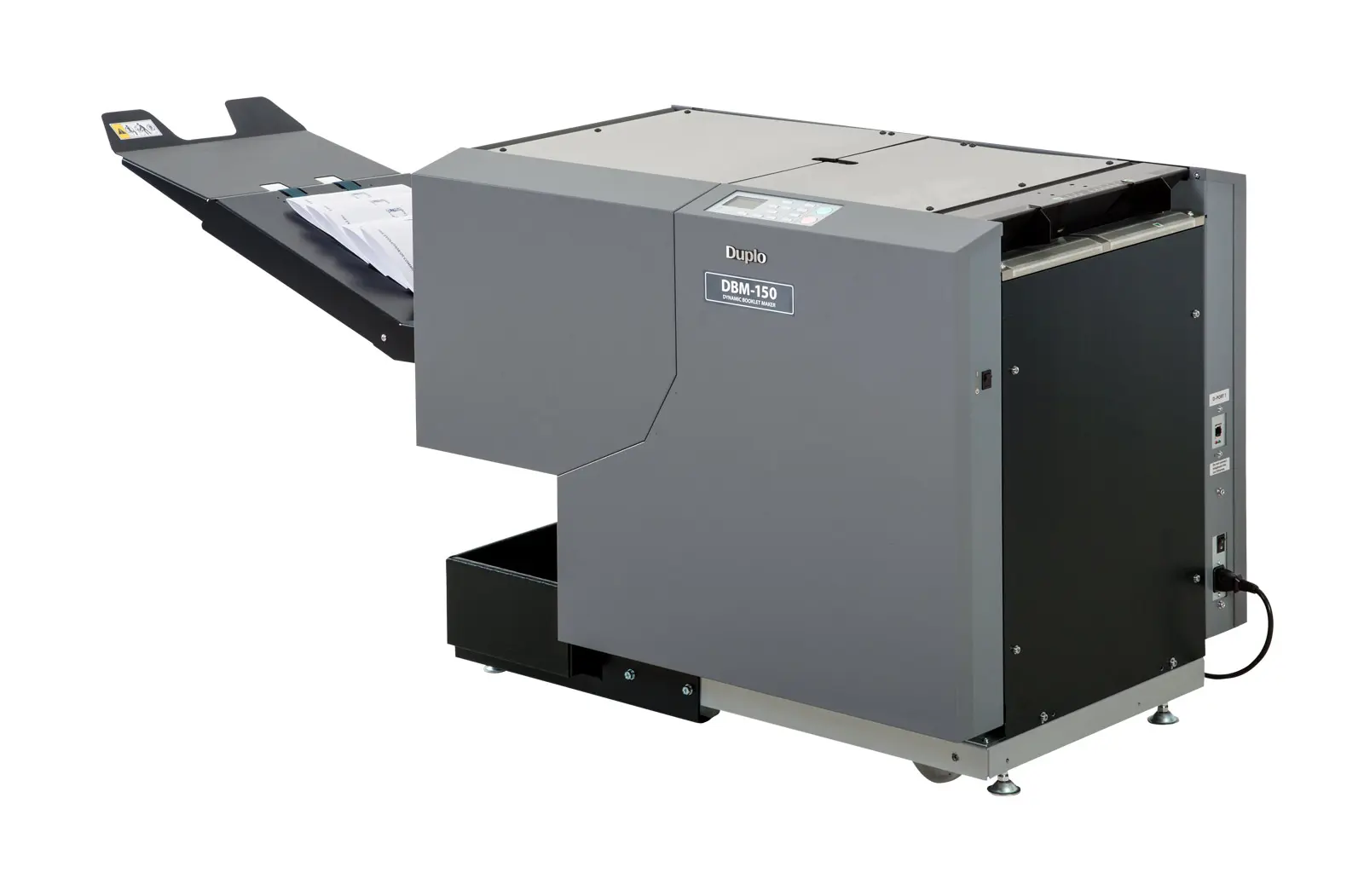

The 150Fr Booklet System is the world’s smallest fully automatic bookletmaking solution. It features the DFC-101 collator and the DBM-150 Bookletmaker and Trimmer. This is Duplo’s most cost effective solution. The DFC-101 is a vertically arranged collator available in a 10 station configuration with an output speed of up to 4,200 sets/hour. It can be used as a stand-alone unit or connected to a bookletmaker. The DBM-150 is Duplo’s entry level bookletmaker designed for low to mid volume production. The 150Fr Booklet System is the most userfriendly system available in the market today.

Compact footprint, Reliable paper handling, User-friendly, Automatic set-up, Straight or Offset Collating, Trimmer, Hand Feeding, Modularity.

Specifications/Features

Booklet size Saddle stapling and folding : Length 210 to 460 mm Width 120 to 320 mm

Side Stapling (Option) : Length 180 to 231 mm Width 200 to 320 mm

Paper type Fine quality: 64 to 127.9gsm, Art/Coated: 104.7 to 127.9gsm Cover: Fine quality, Art/Coated within 300gsm

Stapling Thickness : Fine Quality: within 2.5mm (Maximum of 25 sheets regardless of paper weight) Art/Coated: within 2.0mm (Maximum of 20 sheets regardless of paper weight)

Maximum Speed: 2400 sets/hour

Detection System: Paper jam (in-feed section, stopper section, ejecting section), Staple near empty, Corner and Side Staple Kit detection, Cover open/close, Knife stop position error, Motor overload detection, Folding roller gap

Power Supply : 240V, 50/60Hz

Weight: 137Kg
