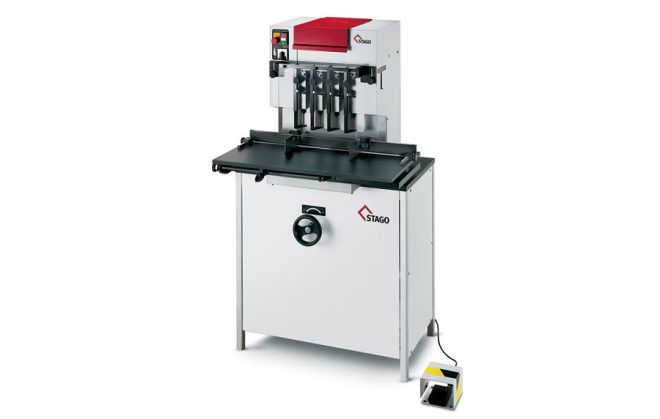

Stago PB5010 Paper Drill

Long-term high performance and absolute precision. The Stago 5010 Paper Drill is ideal to be adjusted for your range of use.

£10,950.00

Need some help? Call 01934 645 050

Description

Long-term high performance and absolute precision. This sentence describes the basic concept of the PB5010 machine series exactly. The performance speaks for itself: up to 5 high-performance drill spindles, a drill diameter of 2-10 mm, a maximum stack height of up to 60 mm, machinable materials: paper, cardboard, textiles, leather, and plastics.

The spindle stroke is done either manually by a foot peddle or automatically by a foot switch and motor drive. The increased machine frame, the high-precision guides and maintenance-free drives guarantee a long machine life. For extreme applications with high heat generation, the optional drill cooling and lubrication ensures a perfect drilling result.

Used by Commercial and Digital Printers, In-Plants, Copy Shops, Quick Printers, Local and National Government Print departments.

  • Drill Spindles: 2-5
  • Drilling spindle distance: 40-250mm variable
  • Drilling diameter: 2-10mm
  • Drilling Depth: 60mm
  • Drilling Speeds: up to 2400 RPM
  • Paper Sizes: up to A3
  • Up to 5 high-performance drill spindles
  • A maximum stack height of up to 60 mm
  • Certified by GS/CE
  • Comes with a 3 year parts warranty
