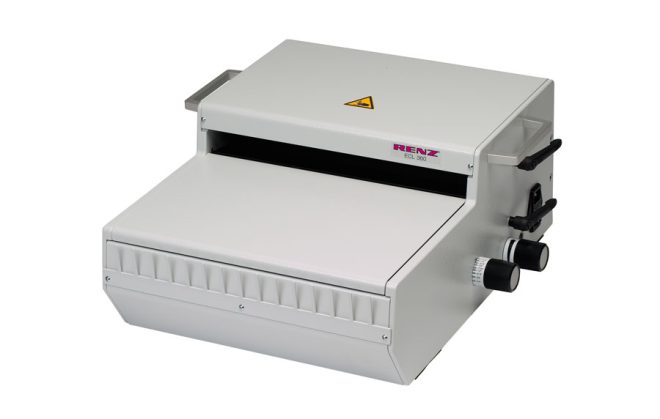

Renz ECL-360 Electric Binding Wire Closing Machine

RENZ ECL-360 closing machine, no effort required. A user-friendly solution to wire bind all your products quickly and easily, available in 360 mm.

We also have this product in stock as a refurbished item. Call us for more information
Need some help? Call 01934 645 050

Description

RENZ ECL-360 closing machine, no effort required. A user-friendly solution to wire bind all your products quickly and easily, available in 360 mm.

  • Quick size adjustment for fast wire diameter set up
  • Integrated ring wire hanging device for comfortable working
  • Binds up to 340 sheets
  • Fast and consistent bind cycle from the first to the last document every time
  • Binds the largest diameter 1 1/2“ (38 mm) RENZ RING WIRE®
  • Automatic protection safety switch
  • Parallel adjustment guarantees a perfect bind every time
  • Maximum Width  :360 mm
  • Bind up to 34 mm
  • Output Max. bound books per hour: 400
  • Max. bound calendars per hour:250

All performance outputs are based on 80 gsm paper and may vary depending on the product type, the working environment and the operator.

See our full range of other Renz products here



Pitch 4:1, 3:1 & 2:1
Binding thickness 1 – 34 mm
Binding element Ø 6.9 – 38 mm
1/4″ – 1 1/2″
Min. binding width 10 mm
Max. binding width 360 mm
Min. unbound edge 65 mm
Max. unbound edge 600 mm
Binding operation Electric
No. of books output per hr 400
No. of calendars output per hr 250
Time required for diameter change 20 s
Format change without diameter
Calendar hangers Loose
Machine dimensions L x W x H 530 x 520 x 230 mm
Machine weight 38 kg
Machine packing dimensions L x W x H 630 x 600 x 340 mm
Machine weight with packing 42 kg
Power requirement 230/250V / 50Hz / 250W
115/200V / 60Hz / 250W

Fast and comfortable wire diameter changes adjusted by a simple hand wheel guarantee the perfect setup.

Automatic safety switch will always cut off the machine preventing any injury to a worker. The machine can be easily reset by turning the power switch off and on.

Pre-punched paper is loaded onto the integrated easy-loading wire holder.

Optional WP 300, which sits on top of the ECL 360, automatically dispenses the wire from the RENZ Wirepack when the foot pedal is pressed. It gives you the most automated bench top wire binding system available.
