Matrix MX530P Pneumatic Laminator

Matrix Pneumatic delivers even faster production times than our standard systems.  Fast and professional laminating, plus foil and and spot varnish effects

Call us now for our best price on this machine

£11,200.00

Need some help? Call 01934 645 050

Description

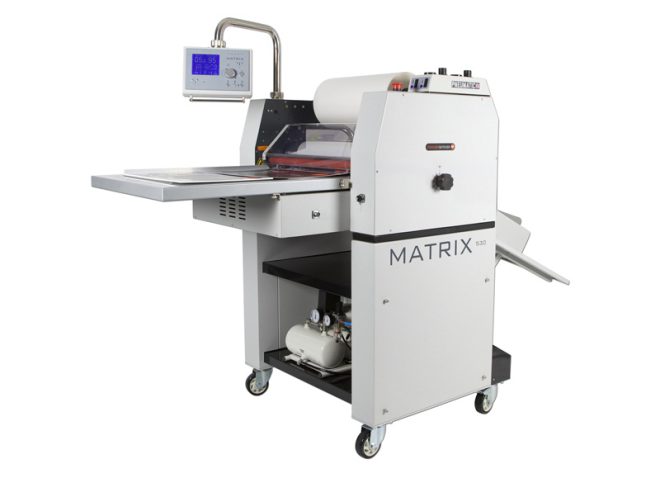

The Matrix MX530P Pneumatic Laminating Machine can run up to twice the speed of our standard systems. Printers can laminate work even faster to get the job finished and back to the customer.

Pneumatic pressure rollers allow you to laminate certain substrates up to 50% quicker, saving both time and cost.

The Pneumatic option is produced in Britain which shortens our supply chains and lead times. We’ve used the highest quality components within the systems, including Omron switches and Schneider electrics.

The MX530P can also be partnered with the Matrix Auto-Feeder to save time and money, as it frees up operators to work on other jobs.

PLEASE CALL US NOW FOR OUR BEST PRICE FOR THE MATRIX MX530P!

The full range of accessories available for the Matrix includes:

  • Auto-Feeder

    The Matrix Auto-Feeder is designed to be easy to install, set-up and operate.

    The Auto-Feeder can be fitted to the full range of Matrix MX-530 Laminating Systems and frees up operators to complete other jobs quickly and efficiently.

    Prints can be loaded on the run for non-stop operation. Aimed at the digital/commercial markets, short-to-mid run business cards, menus, book covers, bespoke prints and more can all be finished faster.

    Feed prints for lamination, foiling & spot UV effects, the Matrix becomes a truly automated print finishing system, allowing operators free to work on other jobs.

    Auto-Feeder
  • Take-Up Unit

    An optional take-up unit that sits at the rear of the Matrix MX530P. This can be used in conjunction with the Flatbook device and also when using the Matrix MX530P to foil and create Spot UV-style effects. It works in perfect synchronisation with the Matrix MX530P and neatly collects spare film and foil.

    Take-Up Unit
  • Flatbook

    Flatbook enables Perfect Bound and PUR Bound book covers to be laminated both sides and stay perfectly flat.

    Curl on book covers is a significant problem in the printing industry, mainly overcome by using expensive specialist films. The Flatbook system enables you to use standard OPP film, on all types of stock.

    It cuts out a channel of film as it laminates, leaving the inside spine unlaminated. This allows the adhesive to stick to the spine and not the laminate. The result is a perfectly bound flat book.

    Flatbook

Specifications:

  • Max. Laminating Speed (m/min / feet/min) 10 / 33
  • Max. Laminating Film Width (mm / inches) 510 / 20
  • Paper Thickness (gsm / lbs) 135+ / 90
  • Warm-up Time (mins) 10
  • Laminating Temperature Range (°C/°F) 0-140 / 32-284
  • Control Panel Multilingual LCD
  • Pressure Adjustment Pneumatic
  • Film Core (mm / inches) 77 / 3
  • Power Supply AC (v, 50Hz) 220/240
  • Power Supply AC (v, 60Hz) 240
  • Power Supply Required (Amps) –
  • Power Consumption (W) 2400
  • Overall Dimensions – Width (mm / inches) 900 / 35
  • Overall Dimensions – Depth x Height (mm / inches) 2050 x 1400 / 81 x 55
  • Gross Machine Weight (Kg / lbs) 240 / 529
  • Warranty 1 Year

Key Features

  • Pneumatic pressure
  • Easy-to-use control panel
  • Anti-curl technology
  • Semi-automatic feed
  • Automatic seperator

Great for use in

  • Commercial printers
  • Digital printers
  • Copy and print shops

Ideally suited for

  • Business cards
  • Menus
  • Book covers
  • Brochures
  • Flyers

Accessories
Auto-Feeder Yes
Optional Stand Standard
Film Slitter Yes
Film Perforating System Standard
Ultra-Quiet Compressor Yes
Flatbook cutting & perforating accessory Yes
