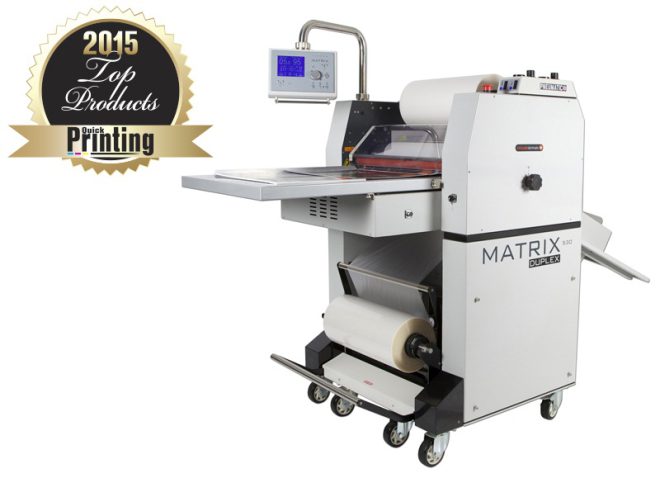

Matrix MX530DP Laminator

Call us now for the best price on this machine!

The award-winning Matrix MX-530 Duplex will halve your production time, laminating both sides of the sheet at the same time, plus additional features such as automatic feeding, foiling and spot varnishing

Need some help? Call 01934 645 050

Product Description

Winner of Quick Printing Readers’ Choice Top Products Awards, the Matrix Duplex is an incredibly cost-effective system that allows printers to laminate single-side, double-side and encapsulate their work, in-house.

It will laminate both sides of the printed sheet at the same time, halving your production time. Whether you gloss the front and matt the back, or use Anti-scratch film on both sides of the print, changing rolls takes a matter of minutes.

The Duplex option is produced in Britain which shortens our supply chains and lead times.

We’ve used the highest quality components within the system, including Omron switches and Schneider electrics.

The MX-530DP can also be partnered with the Matrix Auto-Feeder to save time and money, as it frees up operators to work on other jobs.

PLEASE CALL US NOW FOR OUR BEST PRICE!

The full range of accessories available for the Matrix includes:

    • Auto-Feeder

      The Matrix Auto-Feeder is designed to be easy to install, set-up and operate.

      The Auto-Feeder can be fitted to the full range of Matrix MX-530 Laminating Systems and frees up operators to complete other jobs quickly and efficiently.

      Prints can be loaded on the run for non-stop operation. Aimed at the digital/commercial markets, short-to-mid run business cards, menus, book covers, bespoke prints and more can all be finished faster.

      Feed prints for lamination, foiling & spot UV effects, the Matrix becomes a truly automated print finishing system, allowing operators free to work on other jobs.

      Auto-Feeder
    • Take-Up Unit

      An optional take-up unit that sits at the rear of the Matrix. This can be used in conjunction with the Flatbook device and also when using the Matrix to foil and create Spot UV-style effects. It works in perfect synchronisation with the Matrix and neatly collects spare film and foil.

      Take-Up Unit
    • Flatbook

      Flatbook enables Perfect Bound and PUR Bound book covers to be laminated both sides and stay perfectly flat.

      Curl on book covers is a significant problem in the printing industry, mainly overcome by using expensive specialist films. The Flatbook system enables you to use standard OPP film, on all types of stock.

      It cuts out a channel of film as it laminates, leaving the inside spine unlaminated. This allows the adhesive to stick to the spine and not the laminate. The result is a perfectly bound flat book.

    • Fan System – with AirFlow Technology

      An add-on accessory, designed exclusively for the Matrix. Laminated sheets collect in the output tray effortlessly.

      Fan System - with AirFlow Technology
    • Film Slitter

      Designed to make your life more simple. Rather than changing rolls of film for smaller width jobs than the film that is loaded, the slitter will cut down the film to whatever size you require.

Specifications:

  • Encapsulating Speed (mm/min / inches/min) 1000 / 39
  • Max. Laminating Speed (m/min / feet/min) 10 / 33
  • Max. Encapsulating Width (mm / inches) 320 / 13
  • Max. Laminating Film Width (mm / inches) 500 / 20
  • Paper Thickness (gsm / lbs) 135+ / 90
  • Warm-up Time (mins) 10
  • Laminating Temperature Range (°C/°F) 0-140 / 32-284
  • Control Panel Multilingual LCD
  • Pressure Adjustment Pneumatic
  • Film Core (mm / inches) 77 / 3
  • Power Supply AC (v, 50Hz) 220/240
  • Power Supply AC (v, 60Hz) 240
  • Power Supply Required (Amps) –
  • Power Consumption (W) 4500
  • Overall Dimensions – Width (mm / inches) 900 / 35
  • Overall Dimensions – Depth x Height (mm / inches) 2050×1400 / 81×55
  • Gross Machine Weight (Kg / lbs) 250 / 551
  • Warranty 1 Year

Key Features

  • Pneumatic pressure
  • Laminate both sides at the same time
  • Easy-to-use control panel
  • Anti-curl technology
  • Semi-automatic feed
  • Automatic separator




Great for use in

  • Commercial printers
  • Digital printers
  • Copy and print shops

Ideally suited for

  • Business cards
  • Menus
  • Book covers
  • Brochures
  • Flyers

Accessories
Auto-Feeder Yes
Optional Stand Standard
Film Slitter Yes
Film Perforating System Standard
Ultra-Quiet Compressor Yes
Flatbook cutting & perforating accessory Yes
