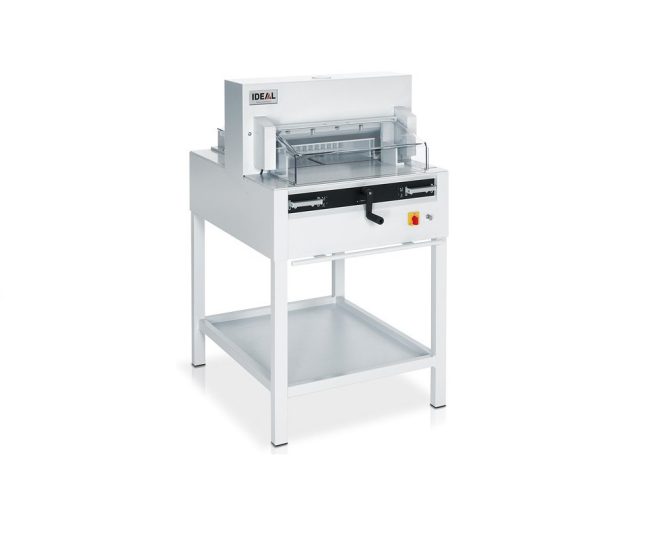

Ideal 4850 Electric Guillotine

IDEAL 4850 Power guillotine, auto clamp and 475 mm cutting length

Need some help? Call 01934 645 050

Description

The Ideal 4850 Electric Guillotine has SCS (Safety Cutting System): Hinged, electronically controlled safety guard on the front table; transparent safety cover on the rear table; main switch and safety lock with key; electronically controlled true two-hand operation; 24 volt controls (low voltage); patented safety drive; automatic blade return from every position; disc brake for instant blade stop; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade change from the front of the machine without removing covers. Safety tested by major independent safety laboratories and complies with the European “CE” standards.

Product characteristics
Equipped with the new, patented EASY-CUT blade activating bars for convenient and safe cutting.  The ergonomic working height of 94 cm guarantees effortless, fatigue-free operation. Comprehensive SCS safety package: hinged, electronically controlled safety guard on the front table; safety cover on the rear table; main switch and safety lock with key; electronically controlled true two-hand operation; 24 volt controls (low voltage); patented safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device with covered cutting edge; blade depth adjustment from the outside of the machine; easy blade and cutting stick change from the front of the machine without removing covers. Electromechanical blade and clamp drive. Spindle guided backgauge with hand crank. Digital measurement readout for backgauge positioning (cm or inches) on the front table. Optical cutting line with bright and durable LEDs. Adjustable backgauge with narrow separations and plastic gliders.  Automatic clamp. Two side lays each on front and rear tables.  Blade made of German high quality steel.  Solid steel blade carrier and adjustable blade guides. Solid all-metal construction.  Complete with stand, storage shelf, practical tool holder and stacking angle.  Optional set of side tables available at an extra cost.

  • Cutting Length: 475mm
  • Cutting Height: 80mm
  • Table Depth: 458mm
  • Narrow Cut: 30mm
  • Power Supply: 230 V / 50 Hz / 1~ (other voltages available)
  • Motor performance (input capacity):1,42 kW
  •  Dimensions: H 1296 x W 762 x D 1053 mm
  • Dimensions with side tables: H 1296 x W 1349 x D 1053 mm
  • Weight: 225 kg
  • Weight with side tables: 234 kg

PRODUCT FEATURES



EASY-CUT

GUARANTEE A SAFE OPERATION

EASY-CUT

A cut can be executed conveniently by means of the patented EASY-CUT blade activating bars, which guarantee a safe two-hand operation.











Convenient setting

HAND CRANK

Convenient setting

Convenient setting of the backgauge via hand crank in combination with the digital measurement readout on the machine table. The precision backgauge spindle guarantees exact cuts.











Bright and durable LEDs

OPTICAL CUTTING LINE

Bright and durable LEDs

The optical cutting line indicator with especially bright and durable LEDs guarantees easy alignment of cutting marks for precise cuts.













Blade changing device

FOR YOUR SAFETY

Blade changing device

The “SCS” package extends to servicing such as changing the blade or cutting stick. There is no need to remove any machine casing. An easy to handle blade-changing device provides a covering of the cutting edge and a safe hook-in device for the blade carrier. By locating and holding the unbolted blade, this device guarantees quick and risk-free blade replacement. The cutting stick is very easy to remove from the side of the machine in order to turn or change it.









Tool holder

PRACTICAL DETAIL

Tool holder

The practical hook-in tool holder is placed on the back table and keeps all necessary tools for blade change and service jobs within reach.











SCS - Safety package

ABSOLUTE OPERATIONAL SAFETY

SCS – Safety package

The “SCS” safety package ensures absolute operational safety during cutting and servicing. Central elements of “SCS” are the transparent safety guards for the working area, and the covers over the rear tables of all guillotines. IDEAL office guillotines are fitted with pivoting guards on the front table, which lock themselves mechanically or electrically during cutting. For the bigger guillotines, electronically controlled light beam guards provide total operational safety. When entering the cutting zone or when lifting the guard, the cutting process is immediately interrupted – a disc brake ensures instant stopping of the blade, and an automatic return to the safe position is activated. Further unique features of the “SCS” safety package for the electric guillotines are the patented IDEAL safety drive, the tamper-proof 24-volt controls, main switch, safety lock with key, and the truly two-handed operation with synchronised activator buttons. For the manually operated guillotines, a safety catch must be released to allow the cutting lever to be lowered, so ensuring two-handed operation for non-electric machines. The “SCS” package extends to servicing such as changing the blade or cutting stick. There is no need to remove any machine casing. An easy to handle blade-changing device provides a covering of the cutting edge and a safe hook-in device for the blade carrier. By locating and holding the unbolted blade, this device guarantees quick and risk-free blade replacement. The cutting stick is very easy to remove from the side of the machine in order to turn or change it. IDEAL Paper Cutting Machines are “GS” approved, correspond to the European “CE” Standard, are “UL” listed, and thus fulfil strict international safety requirements and accident prevention regulations. “SCS” is an exceptional safety system, designed by IDEAL to meet and even exceed these international parameters.
